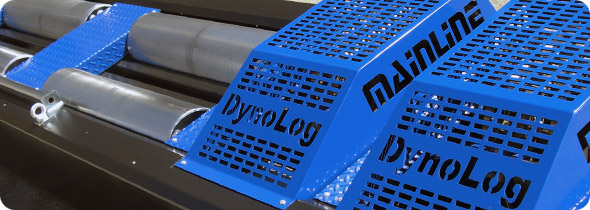

2 Wheel Dyno
Specification
| DYNO: | 2WD600* | 2WD1200 | ||
| Maximum Rated Power @ 240kph: | 850kW (1130hp) | 1700kW (2279Hp) | ||
| Maximum Rated Torque: | 1700Nm (1254Ftlb) | 3400Nm (2507Ftlb) | ||
| Maximum Weight: | 2.2 Tonne | |||
| Maximum Test Speed: | 250Kph | |||
| Roller Diameter: | 217mm | |||
| Knurled Drive Rollers: | Standard | |||
| Dynamic Roller/Retarder Balance: | Standard | |||
| Track Minimum: | 600mm (400mm Option) | |||
| Track Maximum: | 2200mm (2400mm Option) | |||
| Wide Track Roller Options: | 400-2200mm/600–2400mm Optional | |||
| Speed Sensor: | Digital Pulse | |||
| Force Sensor: | Precision Bi-directional S Beam Load Cell | |||
| Vehicle Tie Down Points: | 12 | |||
| Electrical Requirement: | 3 Phase, 32 AMP/Phase, 5 Pin Clipsal 56C532 | |||
| Dynamometer Control Module: | 2WD – RWD/FWD Control System | |||
| Printer: | Colour Inkjet | |||
| Monitor Display: | 22” LCD Monitor - Twin 22” LCD’s Optional | |||
| Hand Control Unit: | Mini Wireless Trackball Keyboard | |||
| Computer Operating System: | Microsoft Windows 7 | |||
| Dynamometer Operating System: | Mainline/DynoLog 2WD Software Control System | |||
| Deluxe Workshop Cabinet with Wheels, Twin Boom Arms & Crash Bar, & Computer/Printer storage: | Standard | |||
* The 2WD600 is available as a “Twin Retarder Ready” Dyno, initially with one retarder and with an empty retarder bay for later installation of the second retarder. When the second retarder is installed it becomes the 2WD1200.
The 2WD600, 2WD600TRR and 2WD1200 are our most popular models. We can also custom build larger and more powerful 2WD versions with a choice of roller and retarder sizes to suit most applications.
NOTE: Specifications subject to change without notice.
