26th February 2025

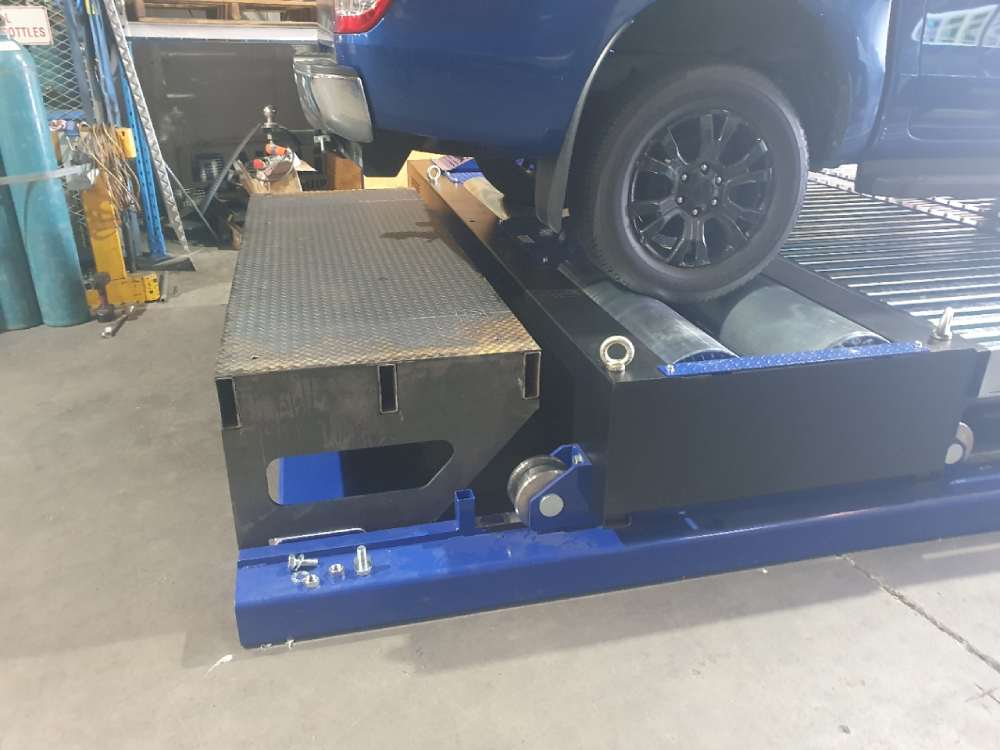

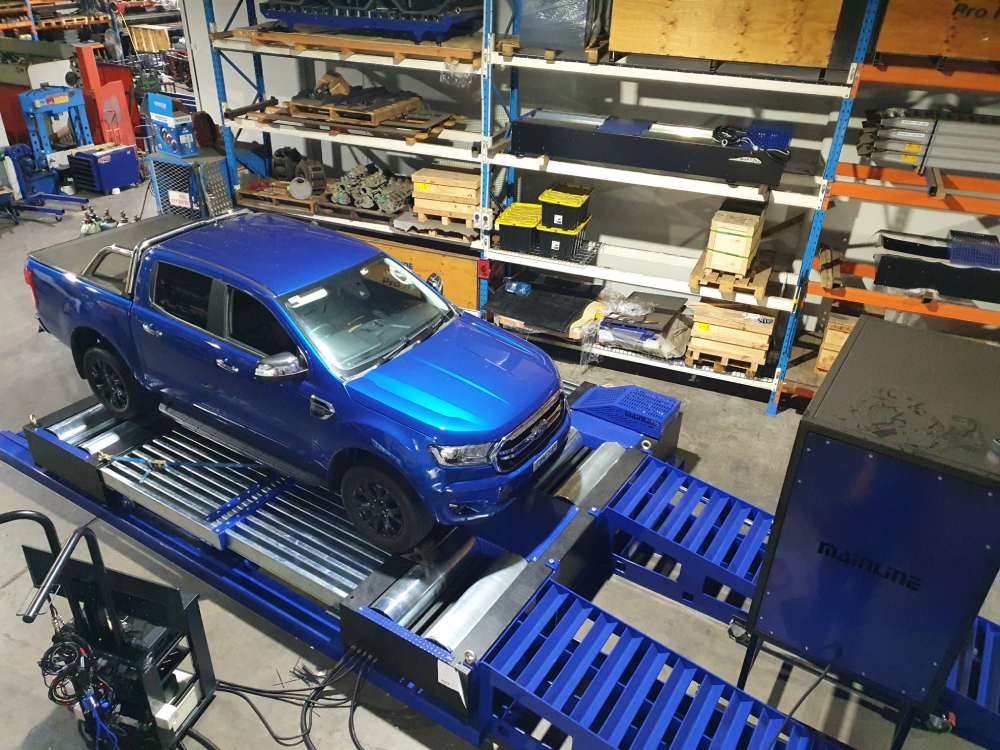

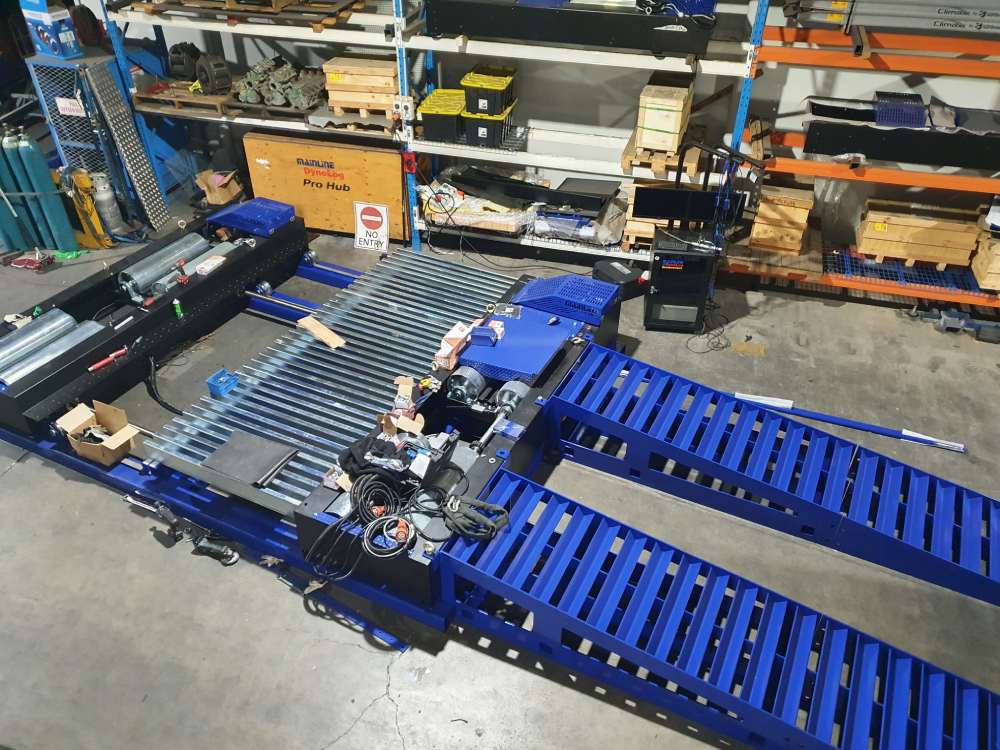

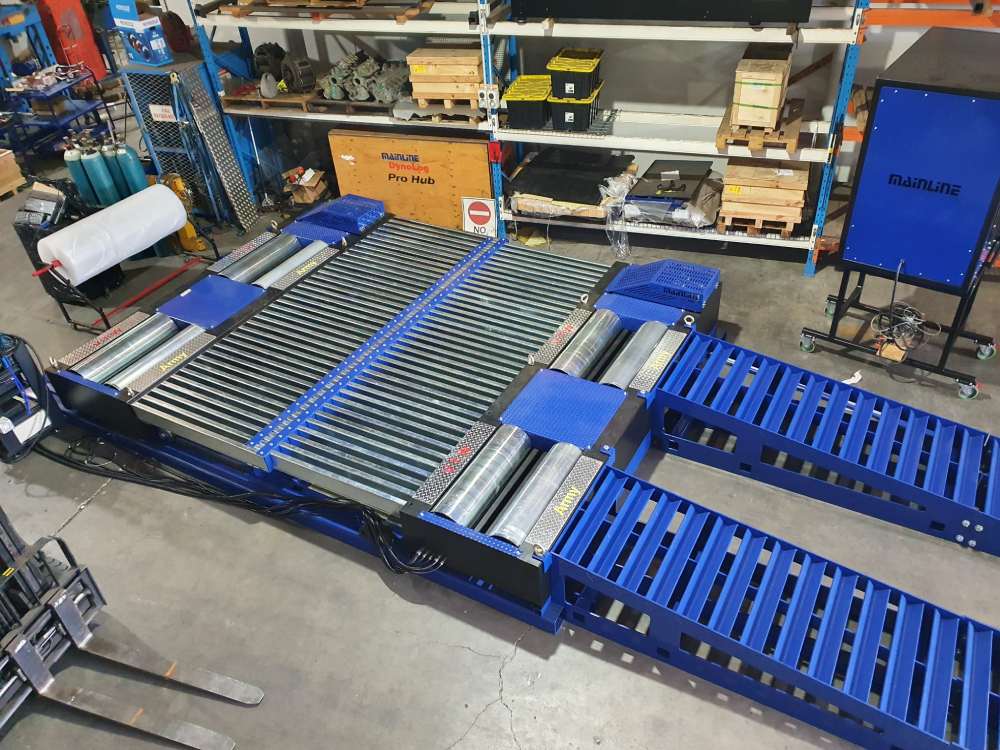

USED HEAVY VEHICLE AWD CHASSIS DYNAMOMETER (EX-MILITARY VEHICLE USE)
Mainline DynoLog AWD1200HD Extra Heavy Duty Reinforced Chassis Beds
Extra Heavy Duty Finger Frame Assembly
2 x Extra Heavy Duty Vehicle Ramps (Extra Long Sectioned - STEEL) (For Above Ground Use)
Extra Wide Track Roller Set - 800mm - 2800mm Track (318mm Diameter)
Vehicle Wheelbase Range - 2900mm to 3900mm
Automatic Motorised Finger Frame Assembly - Extra Long Vehicle Wheelbase Adjustment)
Load Cell / Retarder Cooling Fans (Automatic or Manual Remote Controlled)
Euro Vehicle Restraint Mounts on Finger Frame Assembly
Vehicle Restraint Kit + Traction Rails / Slots (Between Rollers)
24 x Tie Down Points + 4 Repositionable Eye Bolts
Deluxe Workstation Cabinet with Twin Boom Arms & Twin 24" LCD Monitors
Dynamometer Controller Module + DAQ Module (RWD/FWD/AWD)
Control PC Module, Win 10 OS SSD
Mainline DynoLog Premium Pro Dyno Software Program
Automatic Vehicle & Dyno Cooling Fans Control (User definable On / Off parameters)
Wireless Trackball Keyboard (Dyno Hand Controller)
Automatic Weather Station (Live Environmental Power Correction)
Retarder Temperature Sensor (Retarder Temp Logging & Over Temp Protection)
High Speed, Wide Band AFR Meter Kit (0.68 to 2.04 Lambda Range)
Extended Exhaust Tube, Oxygen Sensor, & HD rubber retaining strap)
Engine Tacho - Derived RPM (Engine RPM derived from Wheel Speed)
Twin Channel MAP / Boost Pressure Module (2 x 7 BAR Sensors)
200 MATHS Channels (Create Calculation Channels)
Mainline Dyno Workshop Promotional Signs (Internal Corflute, External Aluminium, Banner)
VEHICLE RESTRAINTS
Strap Tie Bar & Strap Lift Bar, 2 x Rubber Wheel Chocks (Aircraft Quality)
4 x 2500Kg Vehicle Straps with Hook & Clasp & J Hooks + 2 x FWD Vehicle Straps
3PH VEHICLE COOLING FAN
Very Large 1200mm Radial Vehicle Cooling Fan 3PH 15Kw motor + Braked Lift Frame (VSD Controlled)
VSD Unit – Vehicle Cooling Fan Controlled via 15Kw Rated VSD (Needs individual mains supply)
WARRANTY & SUPPORT
12 Months Component Warranty (Excluding Consumables)
12 Months Support & Service Subscription - Unlimited Email, Phone, Internet Technical Support
DYNAMOMETER MAINS POWER
415V 3PH 50HZ 50A (5 PIN – L1, L2, L3, NEUTRAL, EARTH)
PRICE - $ 150,000.00 + GST + (Shipping Costs)
THIS DYNAMOMETER IS FOR SALE WITHIN AUSTRALIA ONLY
USED EX VANE CHASSIS DYNAMOMETER ( INCLUDING VEHICLE FAN)
(CONVERTED TO MDD L SERIES SYSTEM)
- Ex VANE 450 Chassis Bed - (Right Hand-In Ground Installation)
- Power Rating 800Hp / 600Kw – Roller Torque Rating – 1180.8 Ft Lbs / 1600Nm
- Roller Track Width (600mm to 1950mm) NOTE NARROW ROLLER TRACK
- Larger 266mm Diameter Rollers
- Traction Rails / Slots (Between Rollers)
- Tie Down Points x 4; Repositionable Eye Bolts x 4; Strap Tie Bar; Strap Lift Bar
- Vehicle Restraint Kit - 2 x 2500Kg Vehicle Straps + 2 x Vehicle Strap Ratchets
- Heavy Duty Rubber Wheel Chocks
- Workstation / Cabinet with Twin Boom Arms, Monitor Mount, Twin 22" LCD Monitors
- Computer Control PC Module (Win 10 OS); Mainline L Series Dyno Software
- Dynamometer Control / DAQ Module (RWD/FWD Vehicles)
- Wireless Trackball Keyboard (Dyno Hand Controller)
- Automatic Weather Station (Live Environmental Power Correction)
- Automatic Vehicle Cooling Fan ON/OFF control
- Retarder Temperature Sensor (Retarder Temp Logging & Over Temp Protection)
- High Speed, Wide Band AFR Meter Kit (0.68 to 2.04 Lambda Range)
- Extended Exhaust Tube, Oxygen Sensor, & HD rubber retaining strap
- Engine Tacho - Derived RPM (Engine RPM derived from Wheel Speed)
- Engine RPM Module (Inductive & Voltage Probes + Driveline Slip Analysis Channels)
- MAP/Boost Module x 2 (7 BAR Sensors)
- 1 x EGT Channel (Includes Thermocouple
- 2 x 0-30 Volt Definable Analog Inputs
- Injector/Component Duty Cycle Module (IDC, IPW, Frequency, & Max Available IPW)
- Engine Oil Temperature Dipstick Probe
- Engine Inlet Air Temperature Probe
- MATHS Channels x 2 (Operator Configurable Calculation Channels)
- MDD Workshop Sign (Corflute) + MDD Workshop Vinyl Rope Banner
- Small Vehicle Cooling Fan Included (5.5Kw – 15-15 Blower)
WARRANTY & TECHNICAL SUPPORT SUBSCRIPTION - Original Purchaser Only
12 Months Dyno Component Warranty (Excluding Consumables)
12 Months Unlimited Tech Support & Service Subscription via Phone, Internet, Email, Web Support
MAINS POWER REQUIREMENT – (3 Phase)
415V 3PH 32A (5 Wires L1, L2, L3, NEUTRAL, EARTH)
NOTES:
- This dynamometer is an Ex TAFE-NSW unit in good working condition.
- The chassis bed was fully refurbished by us in 2013 and has done little work since.
- A new Frenelsa retarder was fitted during the refurbishment in 2013.
- Rollers Re-knurled, zinc plated and balanced in 2013.
- A new PC and latest DAQ conversion fitted with the last 12 months.
- Software upgraded to current version.
- The chassis bed is Ex VANE 450 unit with short roller track.
- This chassis bed is also for in ground installation / use only.
- Please note that the roller track maximum width is 1950 mm and may not suit all cars.
Package Price $ 30,000.00 + Gst
7th March 2024
***SOLD***
5th March 2024
AVAILABLE SOON - 2WD600P PREMIUM CHASSIS DYNAMOMETER PACKAGE
- 2WD600P Premium Heavy Duty Chassis Bed (Right Hand-Above Ground Installation)
- Power Rating 1200Hp – 895kw / Torque Rating 1250Ftlbs -1700Nm
- Roller Track Width (400mm to 2200mm)
- External Outrigger Chassis Bed Feet (Increased operational stability)
- Heavy Duty Traction Rails / Slots (Between Rollers) (For Multi Roller Traction Hoops Use)
- Tie Down Points x 12; Repositionable Eye Bolts x 4; Strap Tie Bar; Strap Lift Bar
- Vehicle Restraint Kit - 2 x 2500Kg Vehicle Straps + 2 x Vehicle Strap Ratchets (H & C)
- 1500Kg Vehicle Straps J Hook x 2, FWD Vehicle Straps x 2, Short straps x 2, Ratchets x 4
- Heavy Duty Rubber Wheel Chocks
- Workstation / Cabinet with Twin Boom Arms, Twin Monitor Mount, Twin 24" LCD Monitors
- Computer Control PC Module (Win 10 OS 64-Bit); Mainline Premium Pro Dyno Software
- Dynamometer Control / DAQ Module (RWD/FWD Vehicles)
- Wireless Trackball Keyboard (Dyno Hand Controller)
- Automatic Vehicle Fan Control (User definable On / Off parameters) (For Optional Cooling Fan)
- Load Cell / Retarder Cooling Fan (Automatic or Manual Remote Controlled)
- Automatic Weather Station (Live Environmental Power Correction)
- Retarder Temperature Sensor (Retarder Temp Logging & Over Temp Protection)
- High Speed, Wide Band AFR Meter Kit (0.68 to 2.04 Lambda Range) (AFR Heater Switch)
- Extended Exhaust Tube, Oxygen Sensor, & HD rubber retaining strap
- Engine Tacho - Derived RPM (Engine RPM derived from Wheel Speed)
- Engine RPM Module (Inductive & Voltage Probes + Vehicle Driveline Slip Analysis Channels)
- MAP/Boost Module x 2 (7 BAR Sensors)
- 200 MATHS Channels (Operator Configurable Calculation Channels)
- MDD Workshop Sign (Aluminium), MDD Workshop Sign (Corflute), MDD Workshop Vinyl Banner
DESCRIPTION / NOTES
This package is a used/refurbished 2WD Chassis Dynamometer in excellent condition and will present as new. The chassis bed has done very little work. We are offering a new dynamometer warranty on this unit. (24 Months)
This is a Premium level unit with Premium Software included.
New cabinet / workstation will be supplied.
New vehicle straps included.
New Traction Hoops included.
New Set - 3.4 Metre Aluminium Vehicle Ramps Kit (Including Mounting Brackets)
WARRANTY / TECH SUPPORT
24-month warranty and lifetime tech support subscription are being offered with this unit.
This unit will be available on or before March 30th, 2024.
There is no vehicle cooling fan with this package, but a cooling fan may be purchased.
This unit is for the Australian domestic market only. (Australian Purchasers Only)
MAINS POWER REQUIREMENT - WIRED FOR AUSTRALIAN 3PH VOLTAGE SPECIFICATIONS
415V 3PH 50Hz 32A (5 Wires - L1, L2, L3, Neutral, Earth)
WARRANTY & TECHNICAL SUPPORT SUBSCRIPTION – (Original Purchaser Only)
24 Months Dyno Component Warranty (Excluding Consumables)
Lifetime Unlimited Tech Support & Service Subscription via Phone, Internet, Email, Web Support
Package Price - $ 45,000.00 + GST
***SOLD***
